Included:
- Interior trim deadbolt
- Exterior trim beadbolt
- Interior trim lever plate
- Exterior trim handle plate
- 2 keys
- Installation hardware
- Qty: 1
Documents:
[/additional]

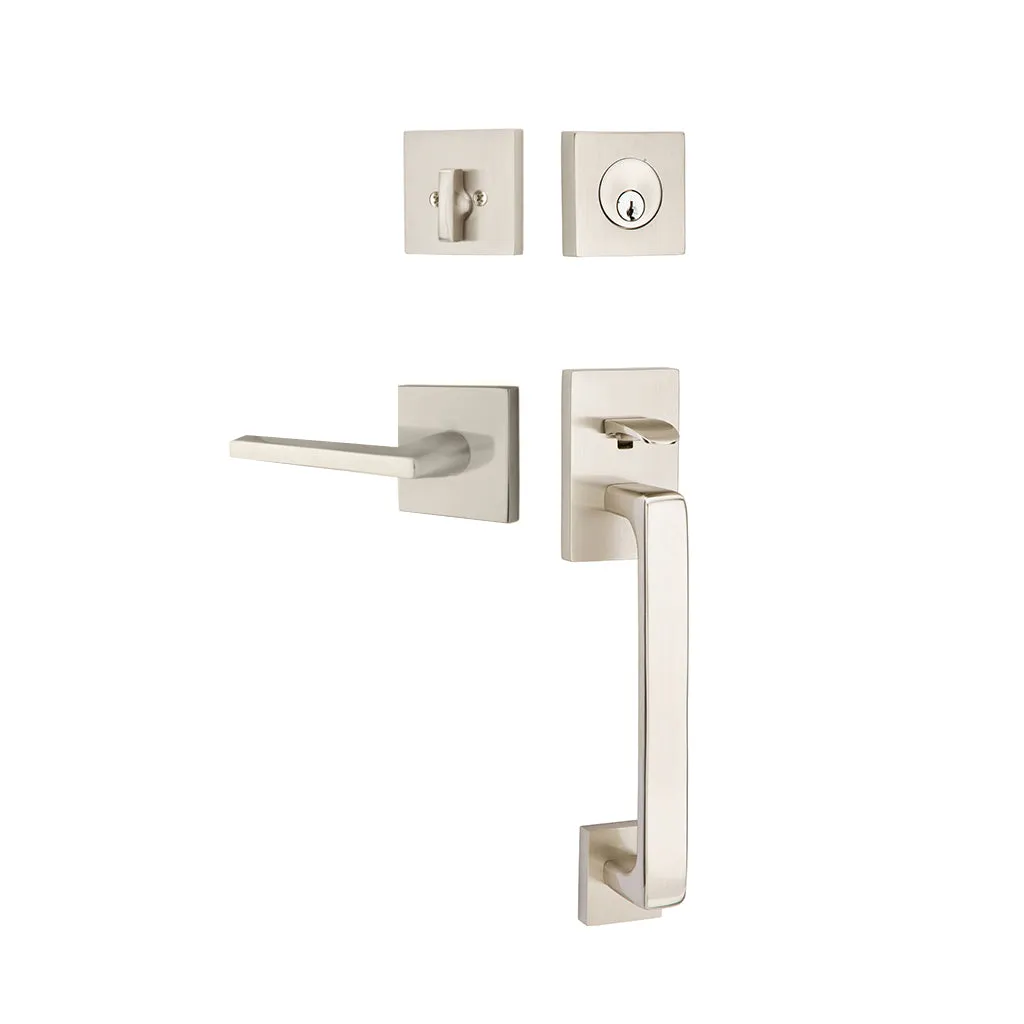

These tubular door entry sets are constructed of solid forged brass, feature a Schlage C Keyway and a modern attractive design . Excellent way to secure your home with a sense of style.With a modern style, this key entry set has an exterior key lock and an interior with manual lock.Also available with key lock inside or dummy function.
Features:
- Handing required if Lever used on inside.
- Available in Single Cylinder, Double Cylinder, or Dummy function.
- Standard 2-1/8 in. bore door prep.
- Schlage C Keyway as standard.
- Standard door thickness of 1-3/4 in. Specify if thicker.
- Standard backset 2 3/8". Specify 2 3/4" backset if required.
- Exterior Handleset Overall Length: 16-3/8 in.
- Exterior Upper Plate: 2-1/2 in. x 4 in. x 1/2 in. thick
- Exterior Lower Plate: 1-3/4 in. x 2 in. x 1/2 in. thick
- Exterior Grip: 1 in. thick
- Clearance between Door & Grip: 1-7/8 in.
- Exterior Projection: 2-1/2 in.
- Exterior/Interior Deadbolt Trim: 2-1/2 in. x 2-1/2 in. x 5/8 in. thick
- Interior Trim Plate: 2-1/2 in. x 2-1/2 in. x 1/2 in. thick
- Sold as complete set. Includes Knob or Lever, Latch and Strike Plate.
- Dummy set for doors where only pull is required. No latch or strike.
- Available in: Satin Brass, oil Rubbed Bronze, Polished Nickel, Satin Nickel, Matt Black, Polished Nickel and Unlacquered Brass
- Material: Brass
- Finish/Color: Satin Nickel
- Dimensions: W: 2,5" * H: 17,5" * D: 1,75"
- Weight: 06 lb.
- Rustproof: Yes
- Warranty (Years): 1
- Material Warranty: Yes
- Finish Warranty: Yes
- Easy Installation: Yes
